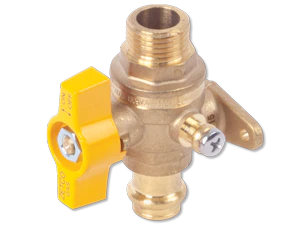

Zetco AGA Approved DZR Brass 15mm Press-fit x 15mm Male Straight Body Outdoor Gas Valve - With Bleed Point
A DZR brass LPG gas ball valve suitable for installation with a gas regulator. Featuring an integral wall fixing bracket, the valve is also fitted with a bleed point to simplify setting of the the gas regulator and to take pressure readings. The male end connection allows for easy disconnection of the gas regulator, while the press-fit connection enables the valve to be connected securely and safely to copper pipe without the use of flame.
Design Features
- Forged dezincification resistant brass body
- Pressure readings can be taken with valve either open or closed
- PTFE washer for reliable leak-free sealing against an appliance
- Conical PTFE stem sealing system for additional leak protection
- Blow-out proof stem to prevent leakage
Production
- Manufactured in Italy under ISO 9001 Quality Management System
- All valves are pressure tested during production
- Additional testing to DVGW VP 614
Technical
- Size: DN15 (1/2")
- Press-fit connection conforming to AS 3688
- Male ISO 228/1 G (BSPP) parallel threaded connection
- Flow control: On/off only, not intended for throttling
- Flow capacity: Full bore
- Temperature range gas: -20°C to 100°C
- Max. pressure: 2100 kPa (refer to graph)
- According to AS 5601 Table 4.1, the operating pressure of consumer gas piping systems containing copper is 200 kPa
- Use with Viega®, Rothenberger® & KemPress® V-profile tools only
