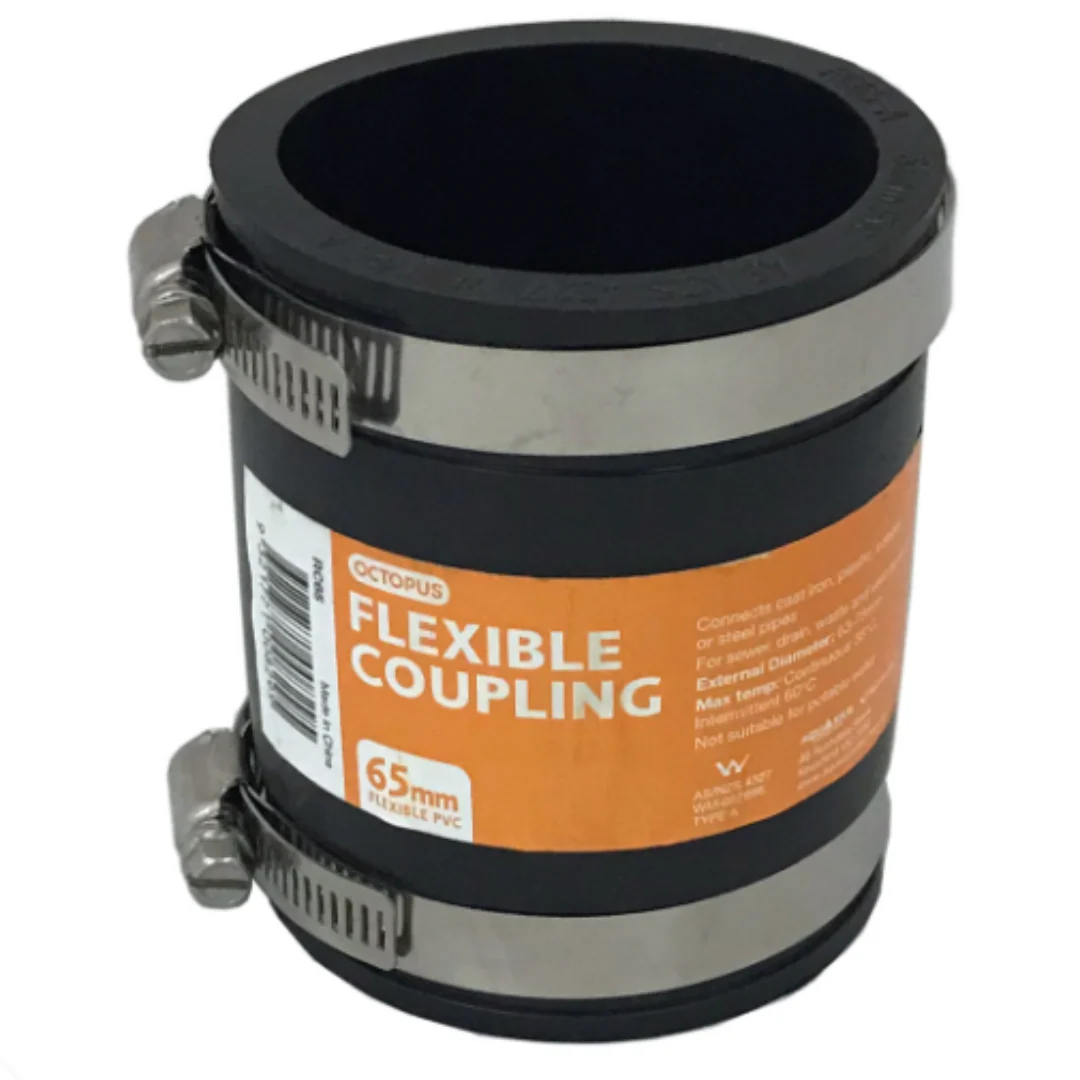

Flexible Coupling 65mm to 65mm PVC

BENEFITS

• Connect waste and drainage pipes of same or different sizes and materials
• Couplings can flex with earth movement to maintain seal
• Only 316 stainless steel clamps and housings are used

• Use for sewage, drainage and other low-pressure applications
• Easy way to connect misaligned pipes
• No special tools required – just use a screw driver or torque wrench
• Ideal for emergency repairs
• Manufactured to AS/NZS 4327
• Product Licence No. WMKT022696

APPLICATIONS

• Can be used on a variety of pipe materials, including PVC, copper, cast iron, clay, fibreglass and steel.
• Can be used in under or above ground applications
• Max temp: 38°C continuous or 60°C intermittent
• Note: Not suitable for potable water

INSTALLATION OVERVIEW

• Make sure pipe is adequately supported
• Loosen, but do not completely remove the steel clamps
• Fit coupling over both pipe ends
• Tighten clamps to 6.7 Nm torque
• Installation is subject to the requirements of the regulatory authority
