209 Double Action Spring Hinge - Visible Fix

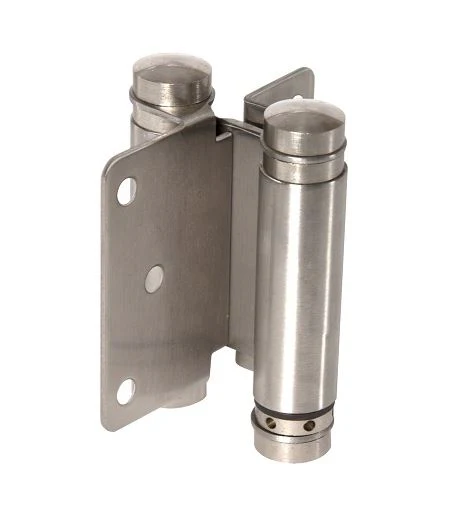

Product image 1

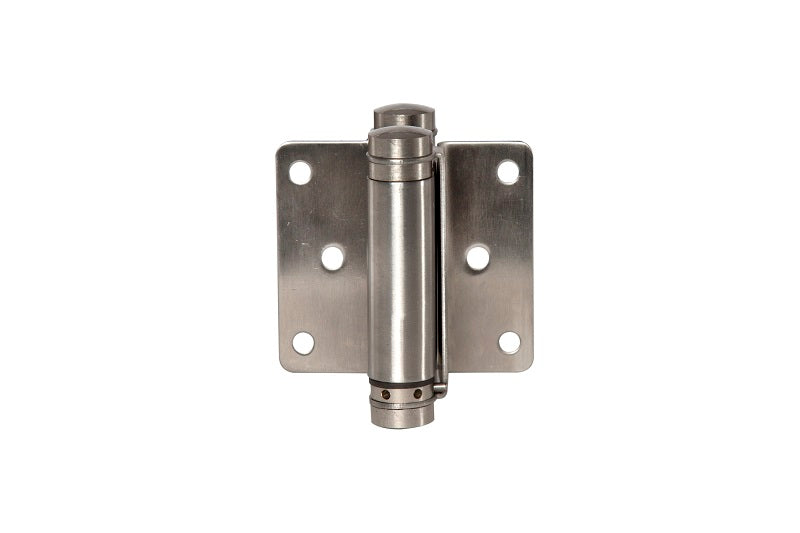

Product image 2

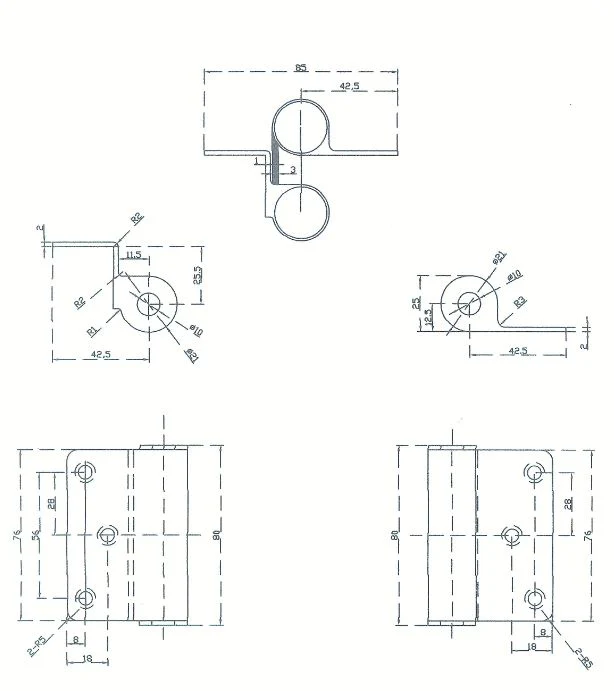

Product image 3

209 Double Action Spring Hinge - Visible Fix

Specification

Material #304 Stainless Steel
Finish Satin Stainless Steel
Mounting/Specify Internal face-mounted
Screw fix
Suitable for 13mm Door
Features Spring-assisted hold closed
Allowance for both outward and inward opening
Returns door to the closed position
Adjustable tension
Load Rating 15Kg per hinge


For optimum performance -
2 hinges per door up to 30Kgs
15kg maximum load per hinge for doors over 30kg

Note: 3 Hinges per door is recommended to prevent door bowing

Note All hinges are available with or without fixings.  Please nominate your requirements at the time of ordering.
$37.52
209 Double Action Spring Hinge - Visible Fix
$37.52

Product Information

Shipping & Returns

Description

Specification

Material #304 Stainless Steel
Finish Satin Stainless Steel
Mounting/Specify Internal face-mounted
Screw fix
Suitable for 13mm Door
Features Spring-assisted hold closed
Allowance for both outward and inward opening
Returns door to the closed position
Adjustable tension
Load Rating 15Kg per hinge


For optimum performance -
2 hinges per door up to 30Kgs
15kg maximum load per hinge for doors over 30kg

Note: 3 Hinges per door is recommended to prevent door bowing

Note All hinges are available with or without fixings.  Please nominate your requirements at the time of ordering.
